Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

Assemble with pushing it to the middle of air bag wire module.
Make sure the airbag wire not to be jammed in inner structure of wheel when DAB module is assembled on wheel.

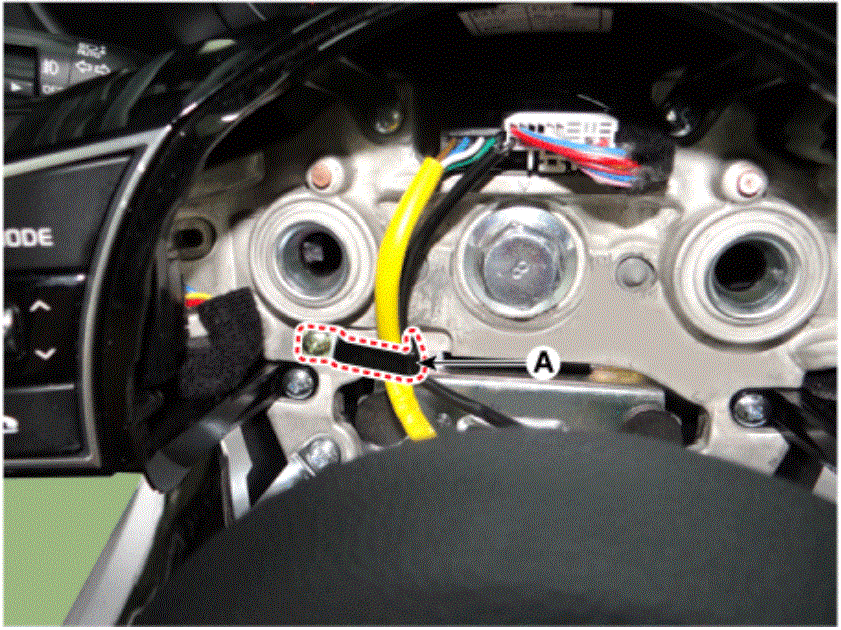

Make airbag and horn wire to be fixed by using band clips (A) in steering wheel.

G00588634

Courtesy of KIA MOTORS AMERICA, INC.
