Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Engine Mechanical System - " COOLANT ")

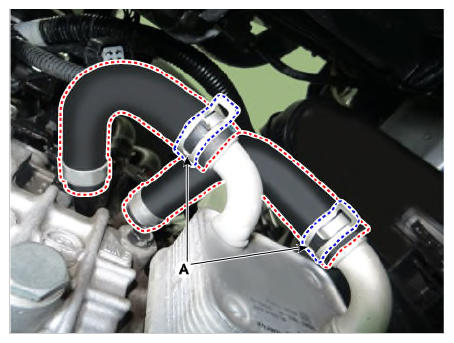

Separate the coolant hoses (A) from the IVTF warmer.

Courtesy of KIA MOTORS AMERICA, INC.

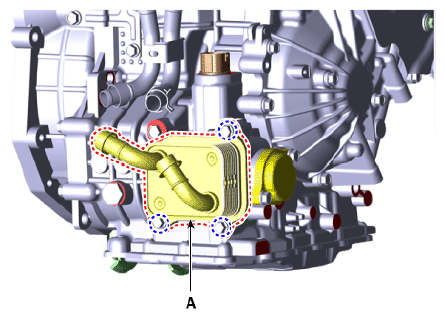

Remove the IVTF warmer (A) after loosening the mounting bolts.
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)
