Repair Procedures: Removal
- Remove the front bumper.
(Refer to Body (Interior and Exterior) - " FRONT BUMPER ASSEMBLY ")

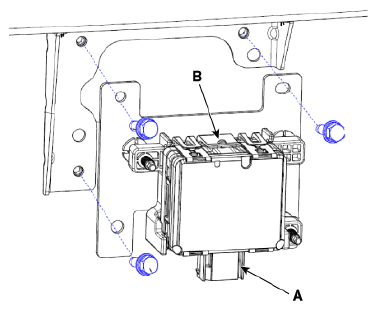

- Disconnect the SCC & FCA radar connector (A).
- Remove the SCC & FCA radar (B) after loosening the mounting nuts.
(Refer to Body (Interior and Exterior) - " FRONT BUMPER ASSEMBLY ")
