Repair Procedures: Inspection
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - " AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

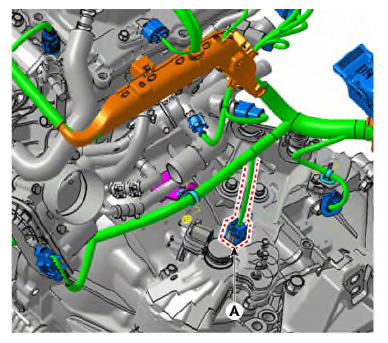

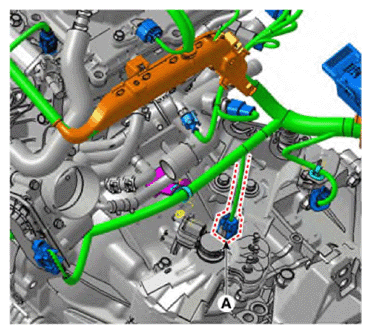

- Disconnect the back up lamp switch connector (A).

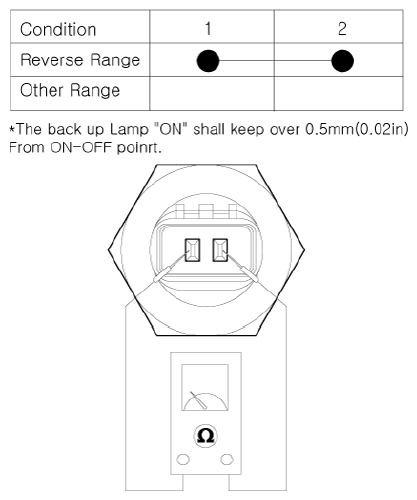

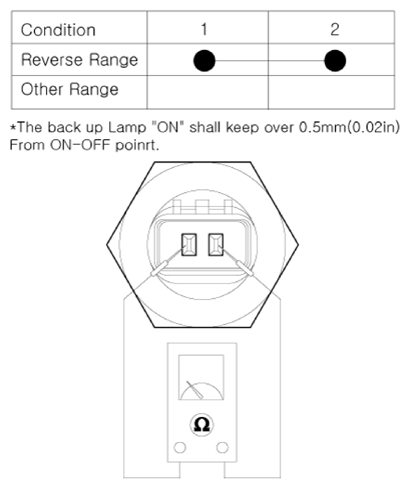

- Check the continuity between power terminal and signal terminal.
