Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

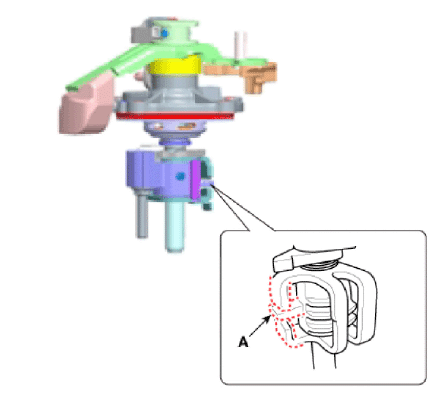

    • When installing, set control shaft lever to neutral position (A).
      G12830423Courtesy of KIA MOTORS AMERICA, INC.

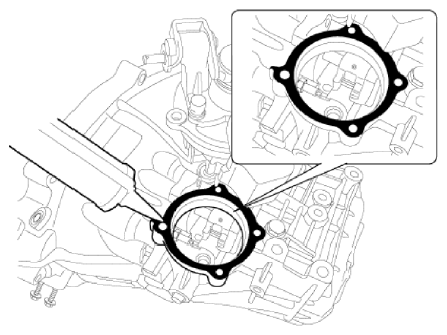

    • Apply the sealant to the contact surface of transaxle and control shaft.

    Specified sealant:  Anaerobic adhesive for flange
    G12830424Courtesy of KIA MOTORS AMERICA, INC.
