Repair Procedures: Replacement

  1. Remove the front door window glass.

    (Refer to Front Door - " FRONT DOOR WINDOW GLASS  ")

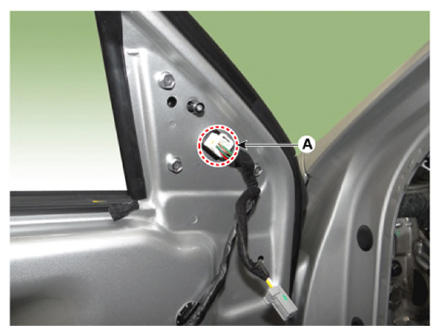

  2. Disconnect the outside rear view mirror connector (A).
    G12829675Courtesy of KIA MOTORS AMERICA, INC.

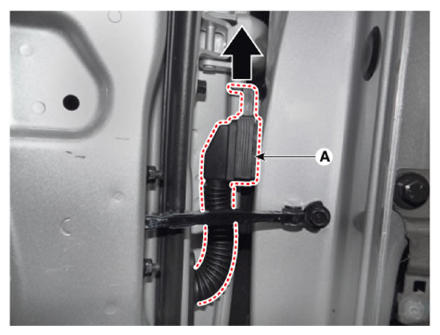

  3. Disconnect the front door main connector (A).
    G12829676Courtesy of KIA MOTORS AMERICA, INC.

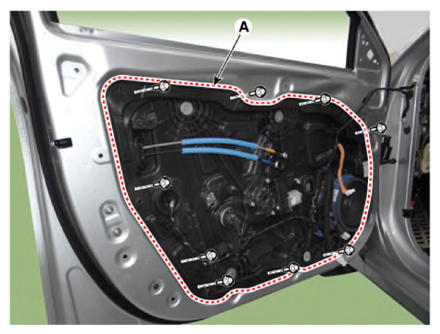

  4. Loosen the mounting bolts and remove the front door module (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

    G12829677Courtesy of KIA MOTORS AMERICA, INC.

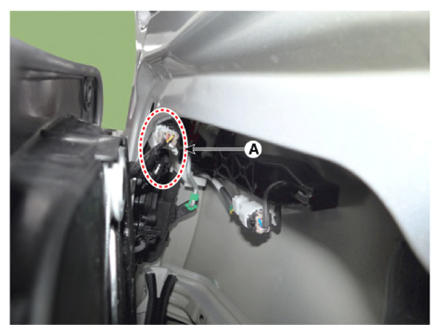

  5. Disconnect the front door latch connector (A).
    G12829678Courtesy of KIA MOTORS AMERICA, INC.

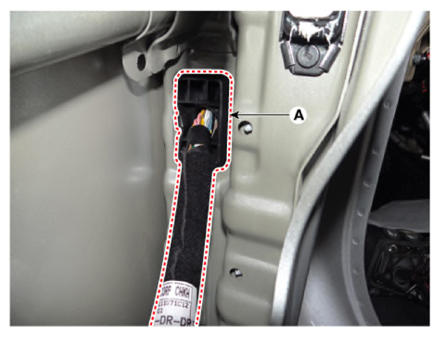

  6. Disconnect the front door main wiring (A).
    G12829679Courtesy of KIA MOTORS AMERICA, INC.

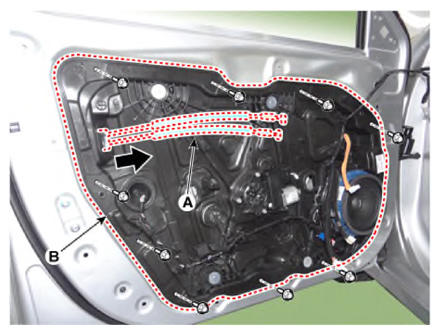

  7. Remove the front door module (B) from the inside handle cable (A) by pulling it in the direction of the arrow
    G12829680Courtesy of KIA MOTORS AMERICA, INC.

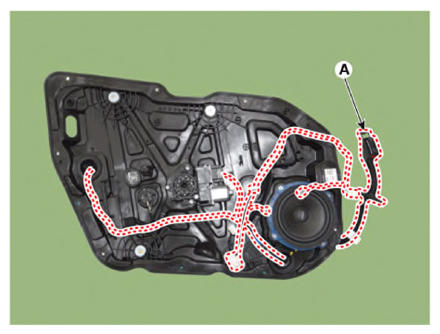

  8. Disconnect the connectors and front door module wiring harness (A).
    G12829681Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the front speaker.

    (Refer to Body Electrical System - " SPEAKERS  ")

  10. Remove the front power window motor.

    (Refer to Body Electrical System - " POWER WINDOW MOTOR  ")

  11. Remove the side impact sensor.

    (Refer to Restraint - " SIDE IMPACT SENSOR (SIS)  ")

  12. To install, reverse the removal procedure.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
