Home › Kia › 2019 › Forte LXS › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Block › Piston and Connecting Rod › Components and Components Location › Components

Components and Components Location: Components

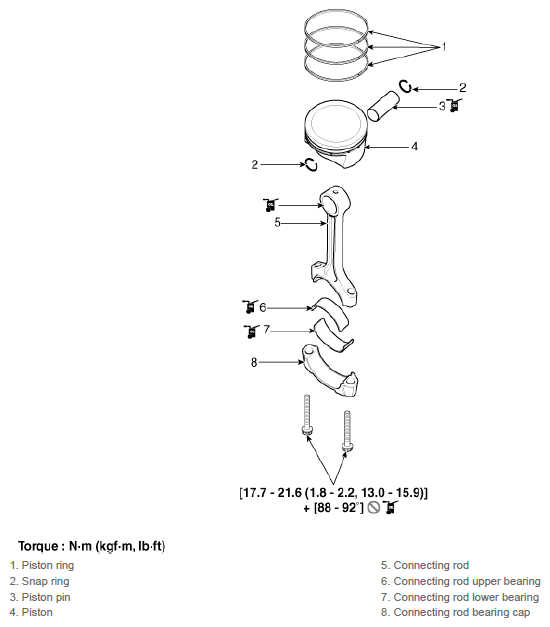

Fig 1: Piston And Connecting Rod Components Location With Torque Specification
G12826193Courtesy of KIA MOTORS AMERICA, INC.
