Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to Body - " FRONT SEAT BACK COVER  ")

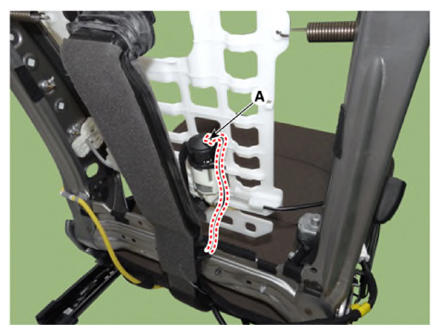

  2. Disconnect the connector (A) from lumber support motor.
    G12832709Courtesy of KIA MOTORS AMERICA, INC.

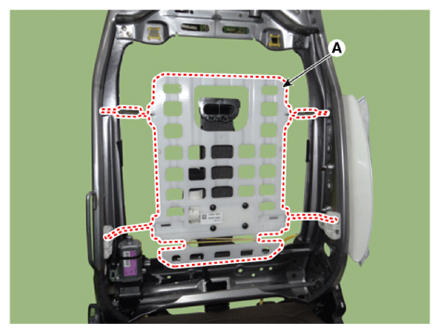

  3. Remove the lumber support (A).
    G12832710Courtesy of KIA MOTORS AMERICA, INC.
