Removal and Installation

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD LOWER PANEL  ")

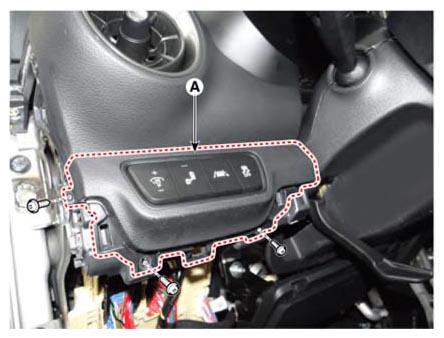

  3. Remove the side crash pad switch panel (A) after loosening the mounting screws.
    G12831965Courtesy of KIA MOTORS AMERICA, INC.

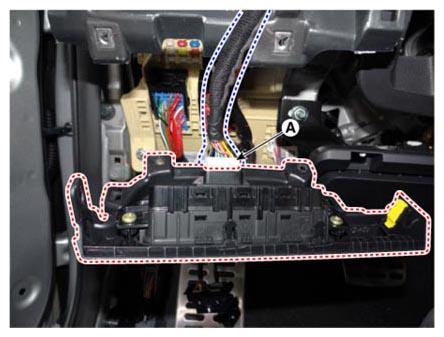

  4. Disconnect the side crash pad switch connector (A).
    G12831966Courtesy of KIA MOTORS AMERICA, INC.

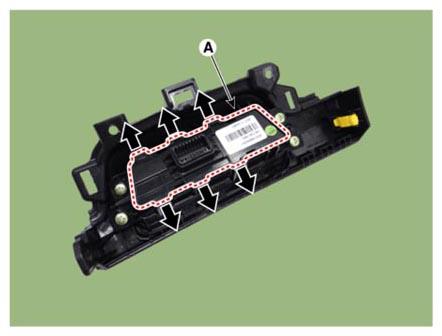

  5. Remove the side crash pad switch assembly (A) from the side crash pad switch panel.
    G12831967Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
