Compression Pressure Inspection

NOTE: If the there is lack of power, excessive oil consumption or poor fuel economy, measure the compression pressure.
  1. Warm up and stop engine.

    Allow the engine to warm up to normal operating temperature.

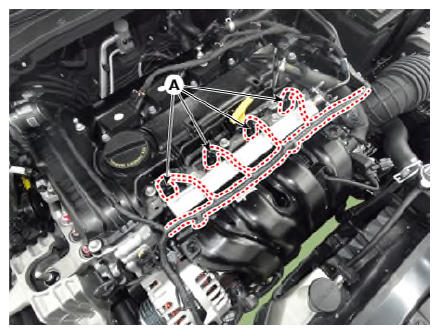

  2. Disconnect the injector connectors (A).
    G12826129Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove spark plugs.

    (Refer to Engine Electrical System - "SPARK PLUG ")

  4. Check cylinder compression pressure.

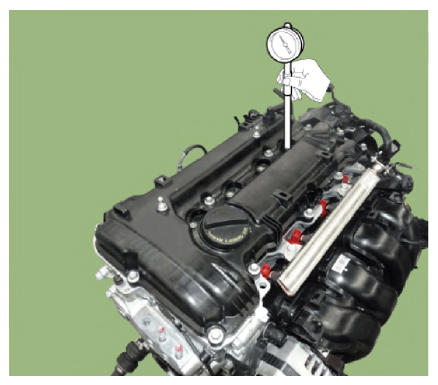

    1. Insert a compression gauge into the spark plug hole.
      G12826130Courtesy of KIA MOTORS AMERICA, INC.
    2. Fully open the throttle.
    3. While cranking the engine, measure the compression pressure.
      NOTE: Always use a fully charged battery to obtain engine speed of 200 rpm or more.
    4. Repeat steps  1 through  3 for each cylinder.
      NOTE: This measurement must be done in as short a time as possible.

      Compression pressure:

      1, 275 kPa (13.0 kgf/cm2 , 185 psi)

      Minimum pressure:  1, 128 kPa (11.5 kgf/cm2 , 164 psi)

      Difference between each cylinder:

      100 kPa (1.0 kgf/cm2, 15 psi) or less

    5. If the cylinder compression in 1 or more cylinders is low, pour a small amount of engine oil into the cylinder through the spark plug hole and repeat steps  1 through  3 for cylinders with low compression.
      • If adding oil helps the compression, it is likely that the piston rings and/or cylinder bore are worn or damaged.
      • If pressure stays low, a valve may be sticking or seating is improper, or there may be leakage past the gasket.
  5. Install the other parts reverse order of removal.
  6. Some DTCs may exist after the inspection test and may need to be manually cleared with KDS.
