Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not disassemble BJ assembly
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the Front Driveshaft.

    (Refer to "FRONT DRIVESHAFT ")

  2. Remove the BJ circlip (B) from the TJ housing (A).
    G12817885Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove both boot bands from the TJ housing.
    G12817886Courtesy of KIA MOTORS AMERICA, INC.
    G12817887Courtesy of KIA MOTORS AMERICA, INC.
  4. Pull out the boot from the transaxle side joint (TJ).
  5. While separating joint boot (A) of the transaxle side, wipe the grease in VTJ case (B) and lay them in the correct order.
    G12817888Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:

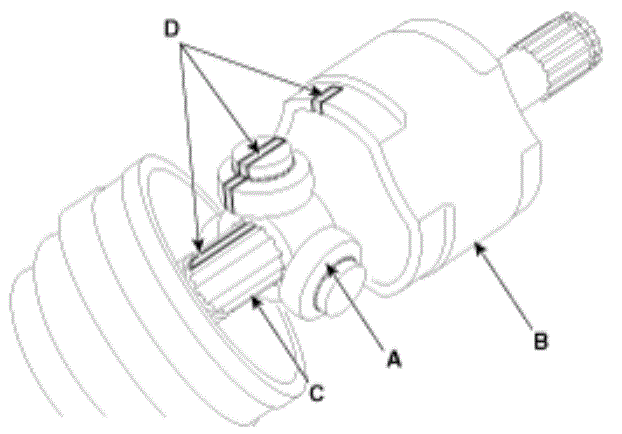

    • Make alignment marks (D) on spider roller assembly (A), TJ housing (B), and shaft spline (C) to aid reassembly.
    G12817889Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the snap ring (A) from the shaft.
    G12817890Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).
    G12817891Courtesy of KIA MOTORS AMERICA, INC.
  8. Clean the spider assembly.
  9. Remove the TJ boot (A).
    CAUTION:
    • For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
    G12817892Courtesy of KIA MOTORS AMERICA, INC.
