Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Be careful not to damage the cover when removing the mirror wiring cover (A).

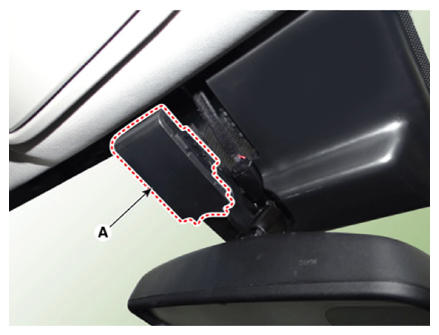

    G13128646Courtesy of KIA MOTORS AMERICA, INC.

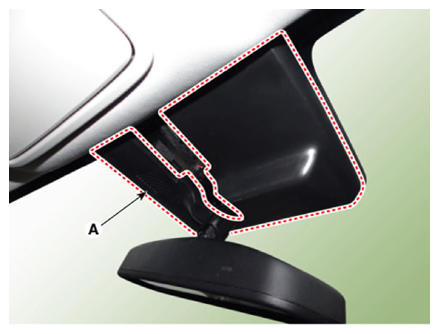

    G13128647Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the front camera unit connector (A).

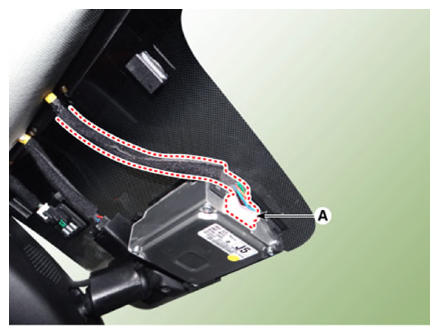

    G13128648Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front camera unit (B) by pulling out lock pins (A).

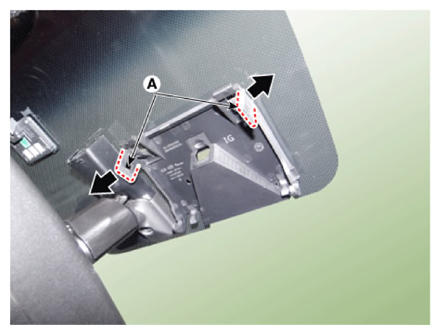

G13128649Courtesy of KIA MOTORS AMERICA, INC.

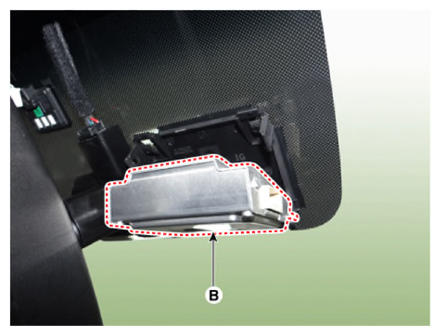

G13128650Courtesy of KIA MOTORS AMERICA, INC.
