Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")

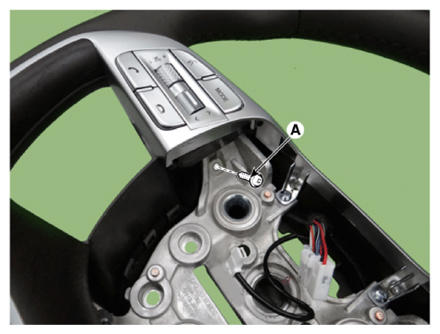

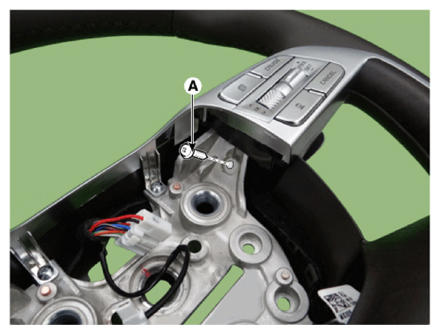

Loosen the paddle shift switch mounting screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

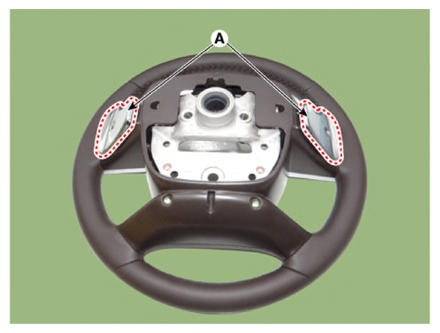

Remove the paddle shift switch (A).

Courtesy of KIA MOTORS AMERICA, INC.

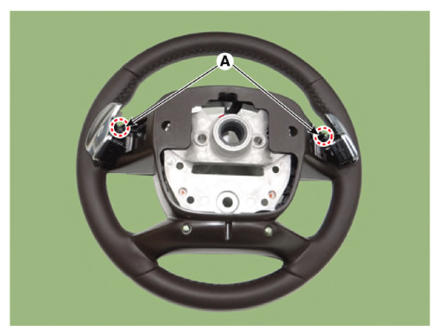

Disconnect the paddle shift switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

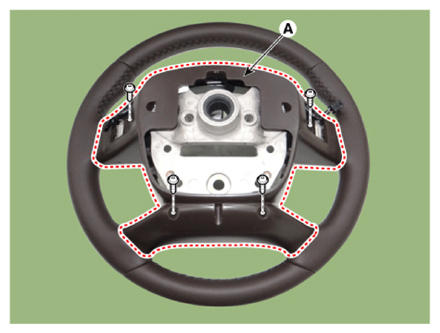

Remove the steering wheel rear cover (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

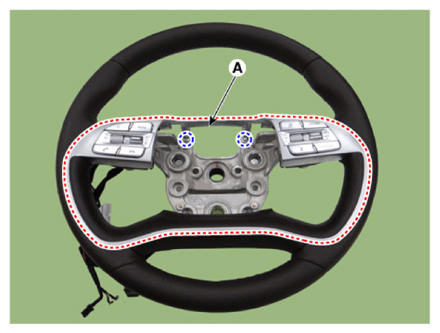

Remove the steering wheel front cover (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

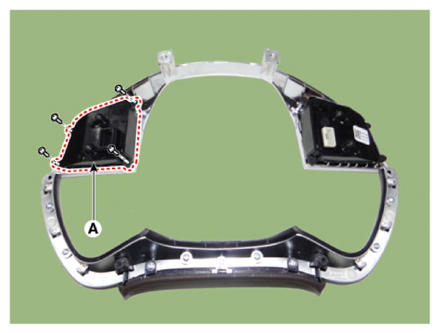

Remove the steering wheel remote controller (A).

Courtesy of KIA MOTORS AMERICA, INC.
