Water Inlet Pipe

Disconnect the negative battery terminal from the trunk room.
Remove the RH air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")
Remove the engine room front & rear under cover and RH & LH engine room side under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the RH & LH engine mounting insulator nuts (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

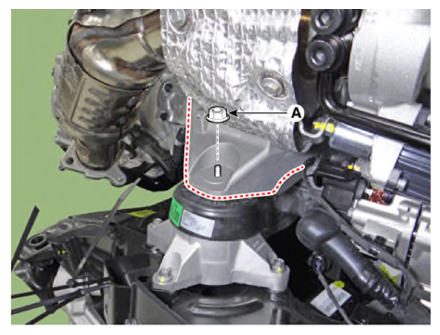

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

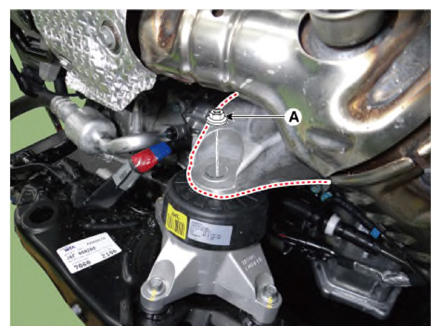

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

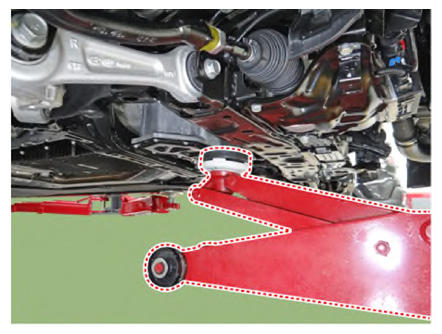

Set the jack to the edge of upper oil pan.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Place a wooden block between the jack and the oil pan to prevent damage to the upper oil pan.
Lift the engine slightly using the jack to obtain space.

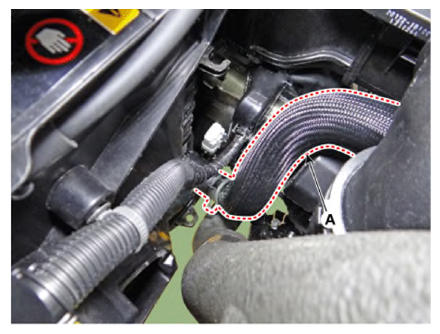

Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

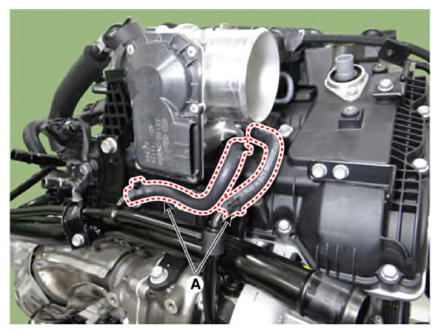

Disconnect the electronic throttle body control (ETC) module coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

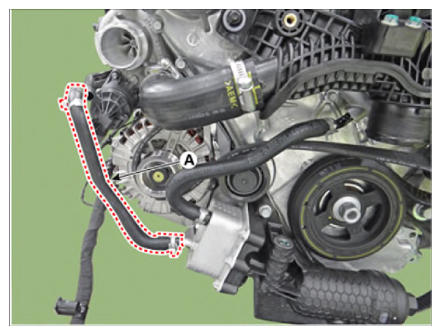

Disconnect the oil cooler hose B (A).

Courtesy of KIA MOTORS AMERICA, INC.

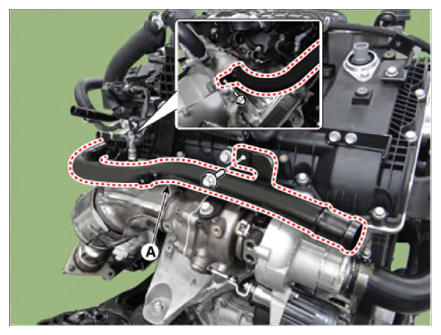

Loosen the RH turbocharger water pipe eye bolts (A) and mounting bolt (B).
Tightening torque

Eye bolts:

33.3 - 39.2 N.m (3.4 - 4.0 kgf.m, 24.6 - 28.9 lb.ft)

Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

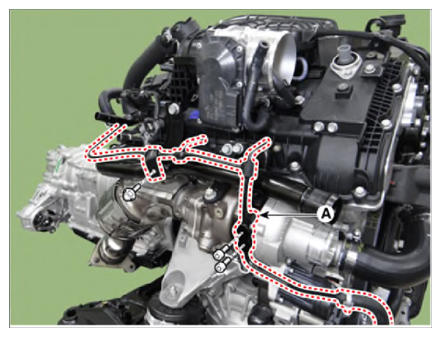

Remove the water inlet pipe (A).
Tightening torque:

24.5 - 28.4 N.m (2.5 - 2.9 kgf.m, 18.1 - 21.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use new water inlet pipe O-ring.
Install in the reverse order of removal.
Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
