Components & Components Location: Components

Fig 1: Exploded View Of Cylinder Block Components With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

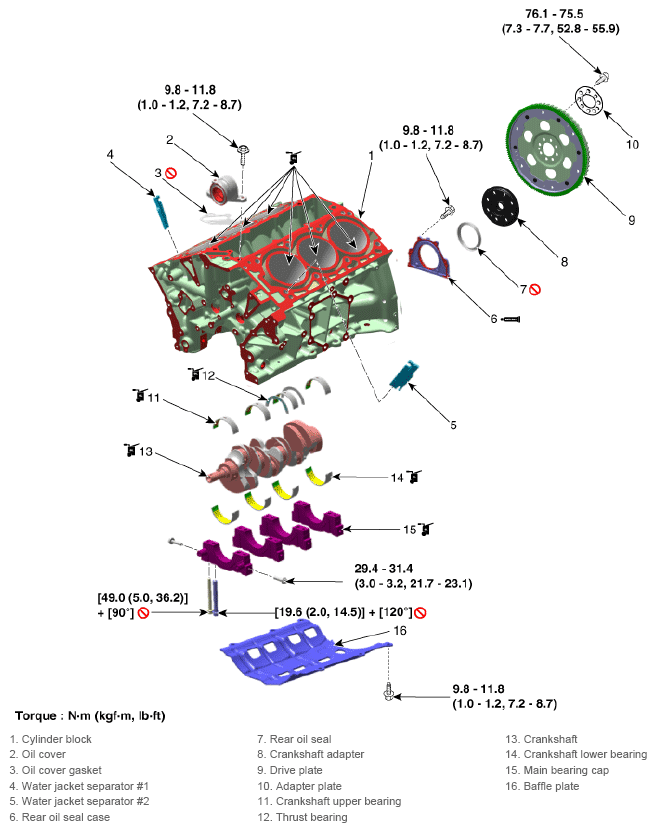

Fig 2: Exploded View Of Cylinder Block Components With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
