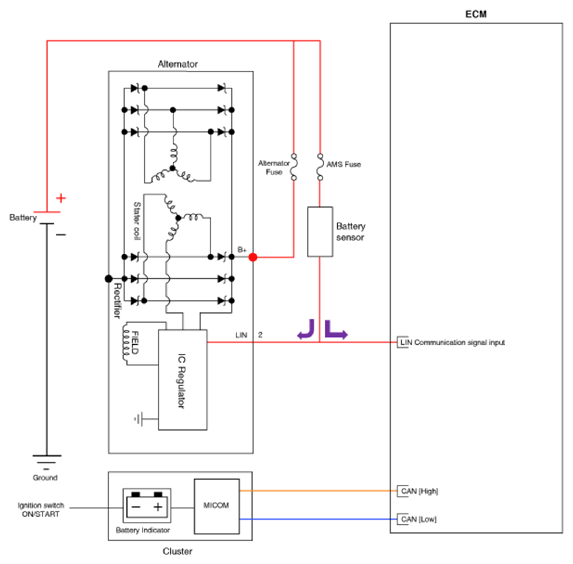

Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Information

• COM signal  - LIN communication control
• B+ Terminal  - The output voltage from the generator travels to the battery via the B+ terminal.
