Steering Column Module (SCM) switch

  1. Disconnect the battery negative terminal.
  2. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  3. Remove the steering column module (SCM) switch (A) by pressing the fixing hook.

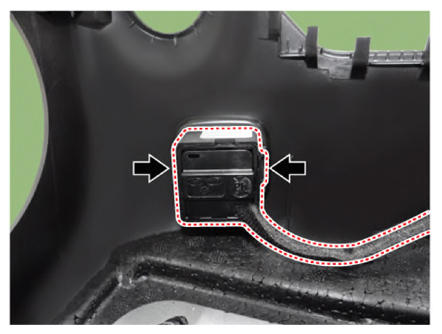

    G13144563Courtesy of KIA MOTORS AMERICA, INC.

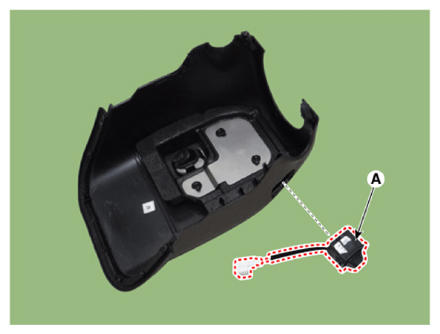

    G13144564Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
