Schematic Diagrams
›
Connector and Terminal Function
Connector and Terminal Function

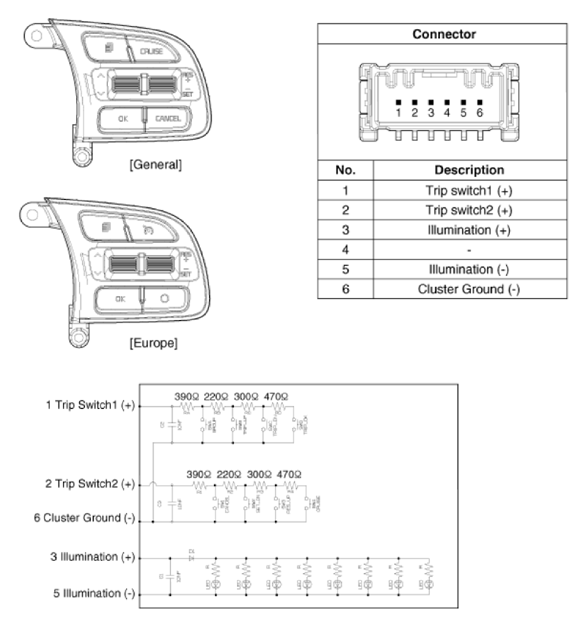

[Trip + Cruise]
Courtesy of KIA MOTORS AMERICA, INC.

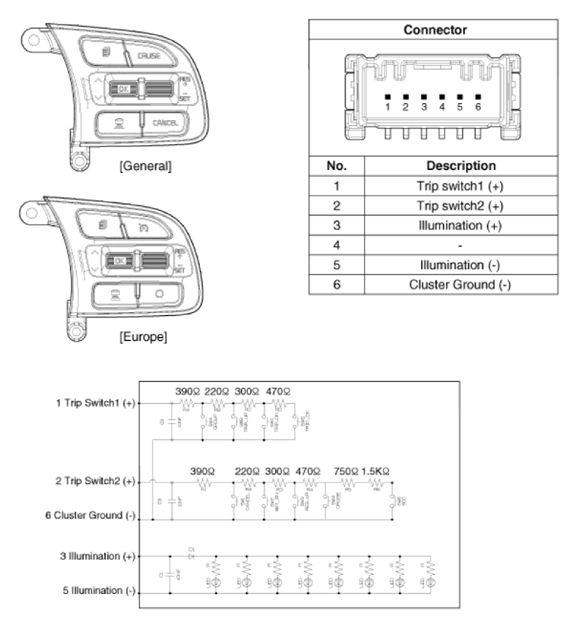

[Trip + Cruise + SCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
