Repair Procedures: Removal

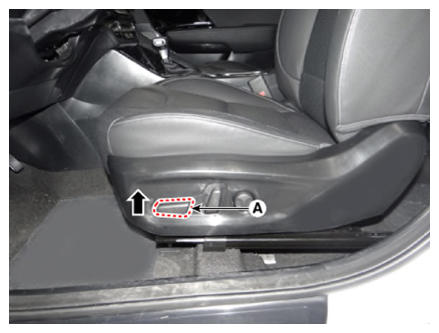

  1. Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).
    G13204460Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

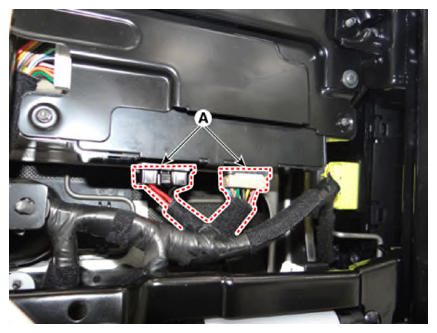

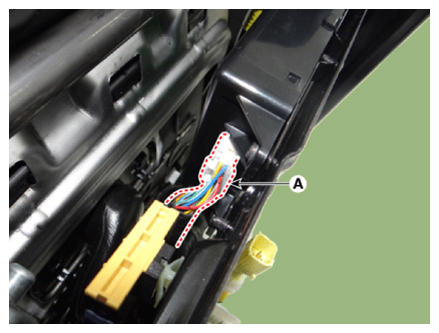

  4. Disconnect the IMS unit connectors (A).
    G13204461Courtesy of KIA MOTORS AMERICA, INC.
    G13204462Courtesy of KIA MOTORS AMERICA, INC.

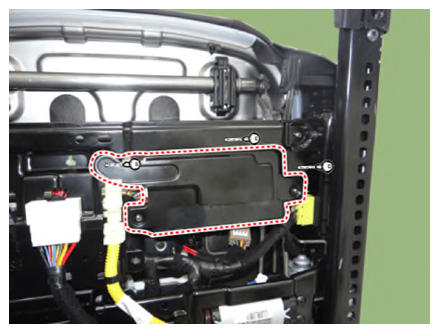

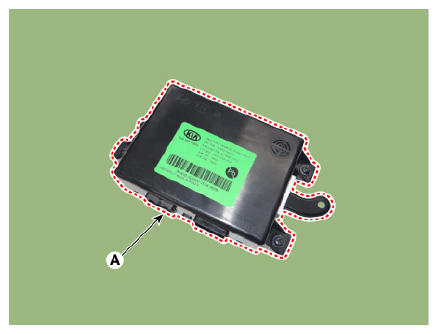

  5. Remove the IMS unit (A) after loosening the mounting screws.
    G13204463Courtesy of KIA MOTORS AMERICA, INC.
    G13204464Courtesy of KIA MOTORS AMERICA, INC.
