Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

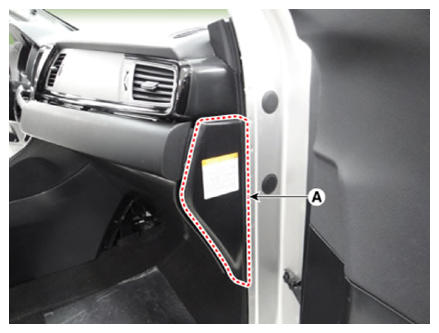

  2. Remove the crash pad side cover [RH] (A).
    G13204288Courtesy of KIA MOTORS AMERICA, INC.

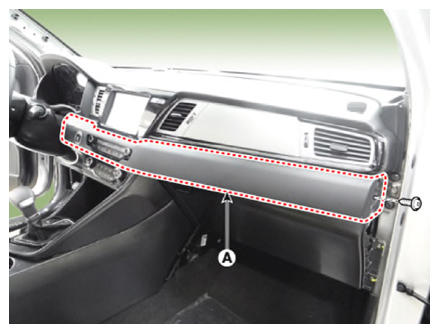

  3. Remove the crash pad plate [RH] (A) after loosening the mounting screws.
    G13204289Courtesy of KIA MOTORS AMERICA, INC.

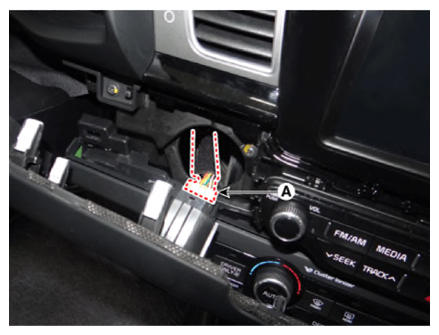

  4. Disconnect the start/stop button connector (A).
    G13204290Courtesy of KIA MOTORS AMERICA, INC.

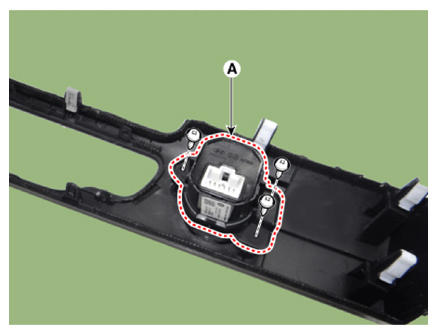

  5. Remove the start/stop button (A) after loosening the mounting screws.
    G13204291Courtesy of KIA MOTORS AMERICA, INC.
