Repair Procedures: Inspection

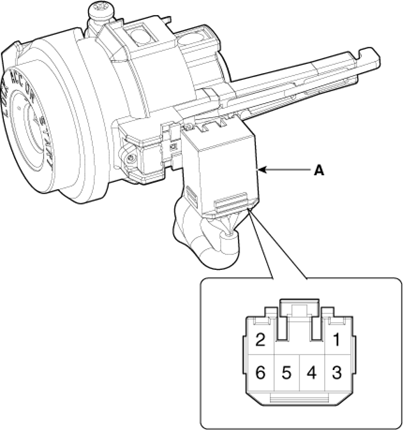

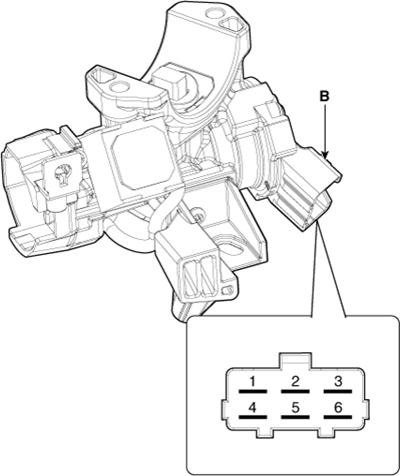

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G13005587Courtesy of KIA MOTORS AMERICA, INC.
    G13005588Courtesy of KIA MOTORS AMERICA, INC.

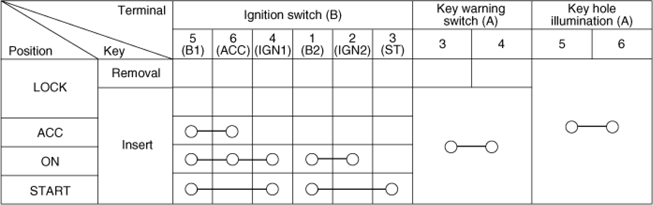

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G13005589Courtesy of KIA MOTORS AMERICA, INC.
