Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. EGR cooler pipe.

    (Refer to Engine Mechanical System - " EGR COOLER  ")

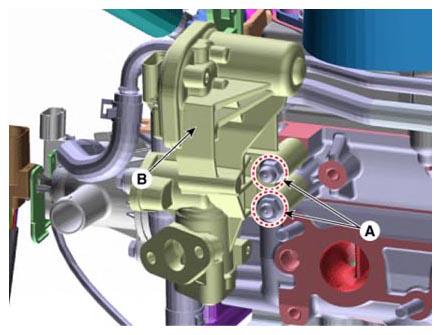

  3. Remove the EEGR valve (B) after loosening the mounting bolts and nuts (A).

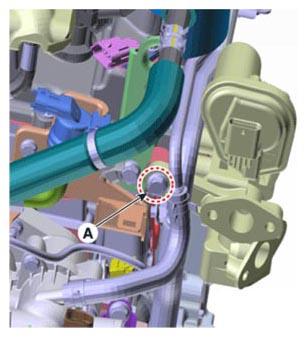

G12998281Courtesy of KIA MOTORS AMERICA, INC.
G12998282Courtesy of KIA MOTORS AMERICA, INC.

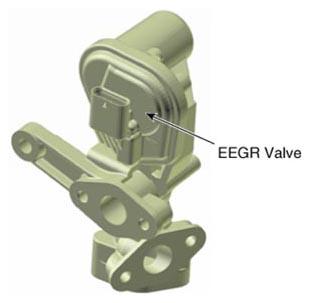

G12998283Courtesy of KIA MOTORS AMERICA, INC.
