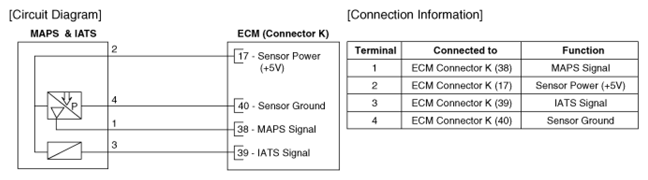

Home › Kia › 2019 › Niro EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Intake Air Temperature Sensor (IATS) › Schematic Diagrams › Circuit Diagram
