HCU Variant Coding

  1. Switch "OFF" the ignition.
  2. Connect the KDS/GDS to Data Link Connector (DLC).

    Switch "ON" the ignition.

  3. Select "Vehicle, Model year, Engine, System".
  4. Select "Vehicle S/W Management".
  5. Select "HCU Variant Coding".

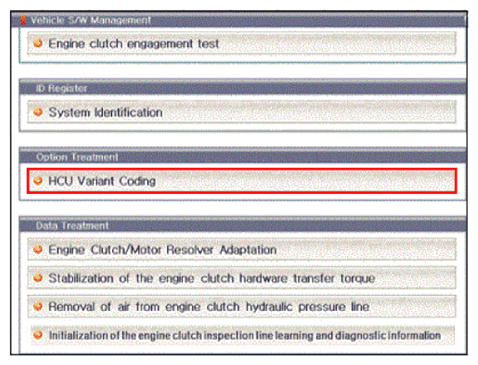

    G12999746Courtesy of KIA MOTORS AMERICA, INC.
