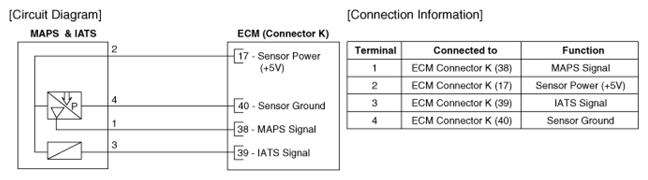

Home › Kia › 2019 › Niro FE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram › Notes
