Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not apply sealant to the body.

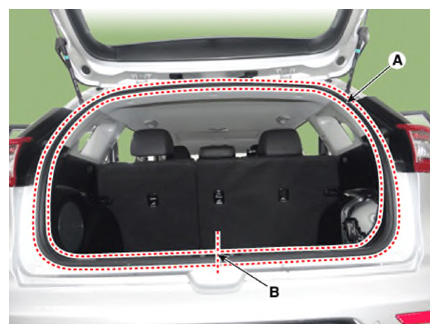

- Remove the Liftgate weatherstrip (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
CAUTION:
Install the weatherstrip aligned with center line (B).
