Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

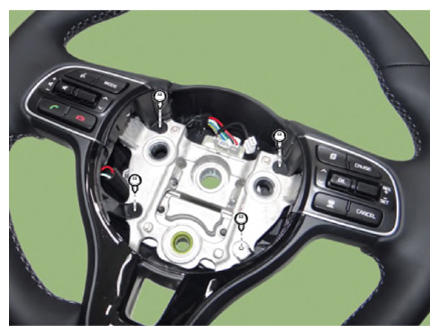

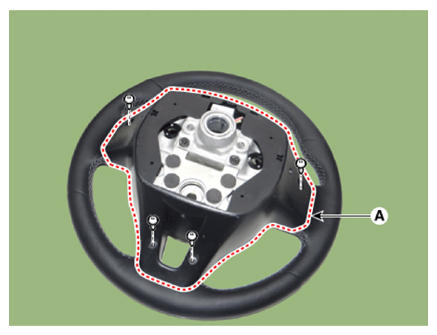

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G12697885Courtesy of KIA MOTORS AMERICA, INC.
    G12697886Courtesy of KIA MOTORS AMERICA, INC.

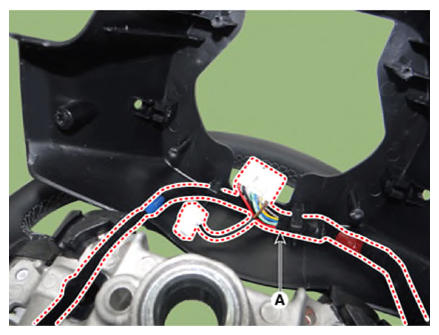

  4. Remove the wiring connector (A) from the steering back cover.
    G12697887Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the steering wheel remote control connector (A).

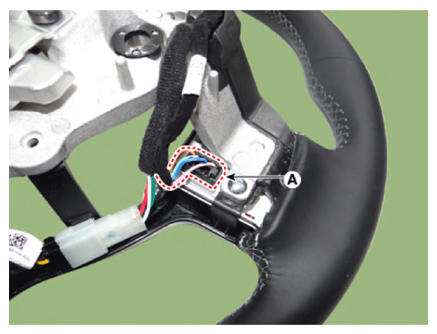

    [LH]

    G12697888Courtesy of KIA MOTORS AMERICA, INC.

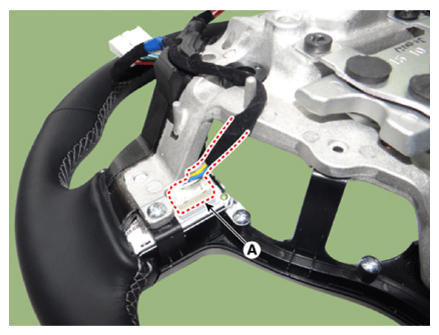

    [RH]

    G12697889Courtesy of KIA MOTORS AMERICA, INC.

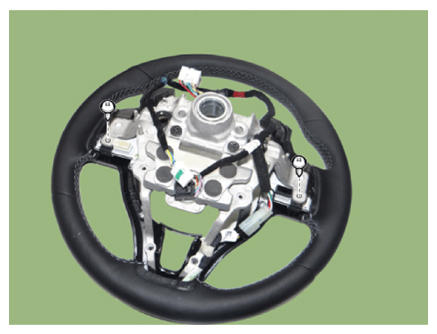

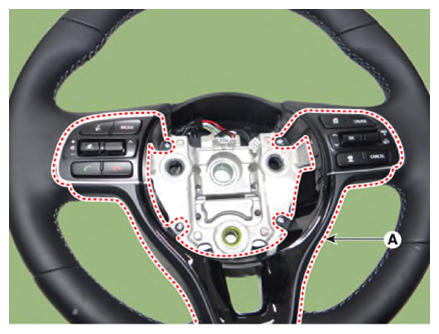

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G12697890Courtesy of KIA MOTORS AMERICA, INC.
    G12697891Courtesy of KIA MOTORS AMERICA, INC.

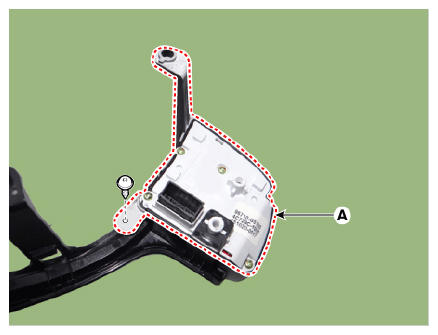

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G12697892Courtesy of KIA MOTORS AMERICA, INC.

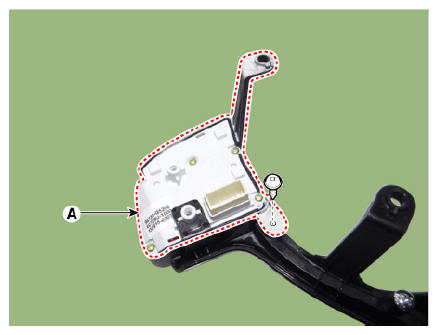

    [RH]

    G12697893Courtesy of KIA MOTORS AMERICA, INC.
