Run Out Inspection

Jack up the vehicle.

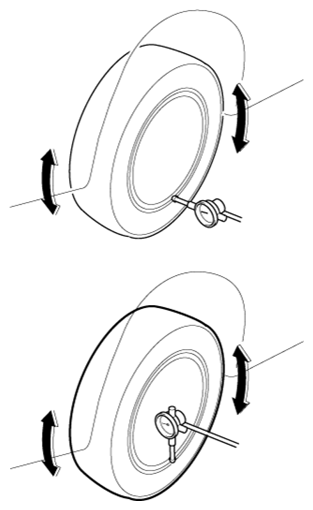

Measure the Wheel Run-Out by using a dial indicator as displayed below.

Run-Out	Aluminum
Radial mm (in.)	Below 0.3 (0.0118)
Lateral mm (in.)	Below 0.3 (0.0118)

If measured value exceeds the standard value, replace the wheel.

Courtesy of KIA MOTORS AMERICA, INC.
