Clutch Actuator Assembly: Components

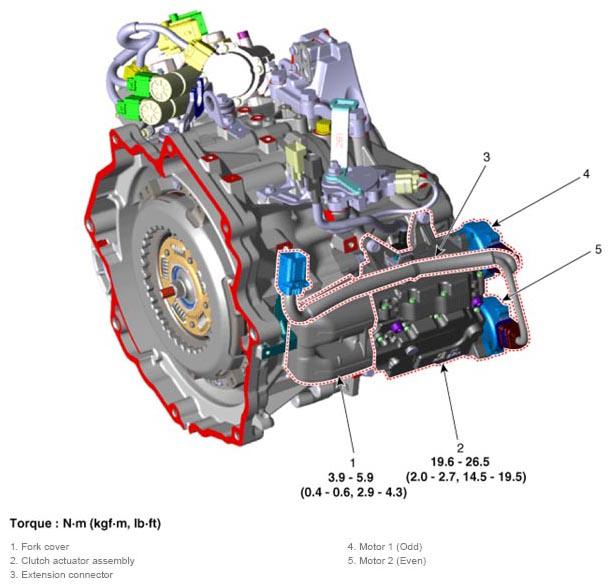

Fig 1: Clutch Actuator Assembly Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
