Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - " GLOVE BOX HOUSING ")
- Remove the body control module (BCM).
(Refer to Body Electrical System - " BODY CONTROL MODULE (BCM) ")

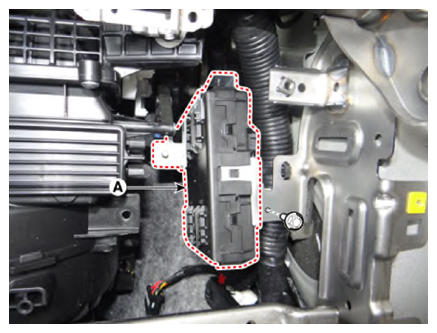

- Remove the smart key unit (A) after loosening the mounting bolt.

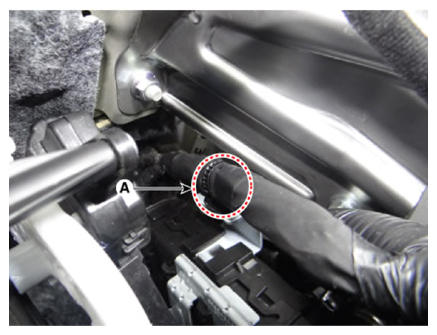

- Remove the smart key unit wiring harness mounting clip (A).

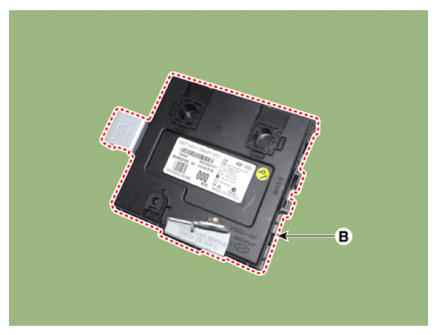

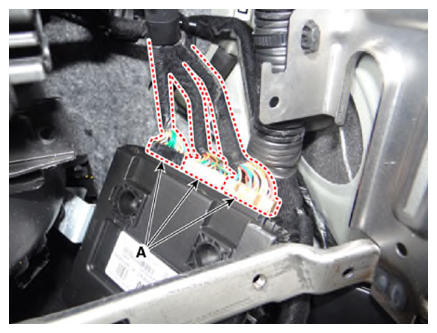

- Remove the smart key unit (B) after disconnecting the connectors (A).
