FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

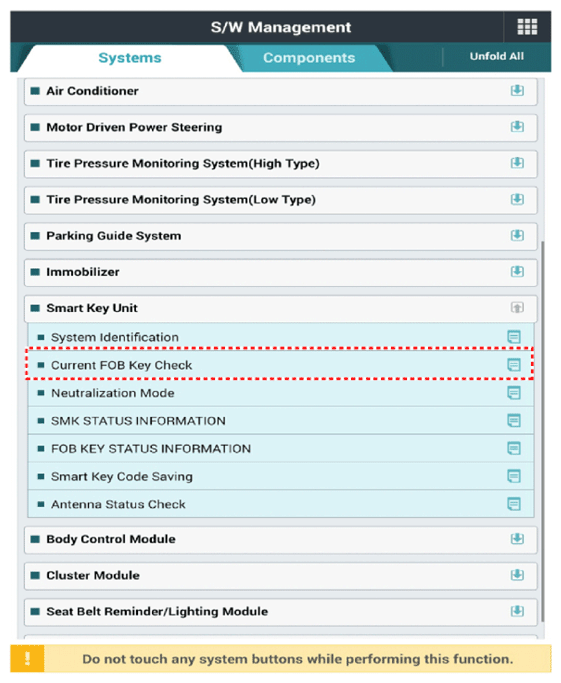

G12996759Courtesy of KIA MOTORS AMERICA, INC.

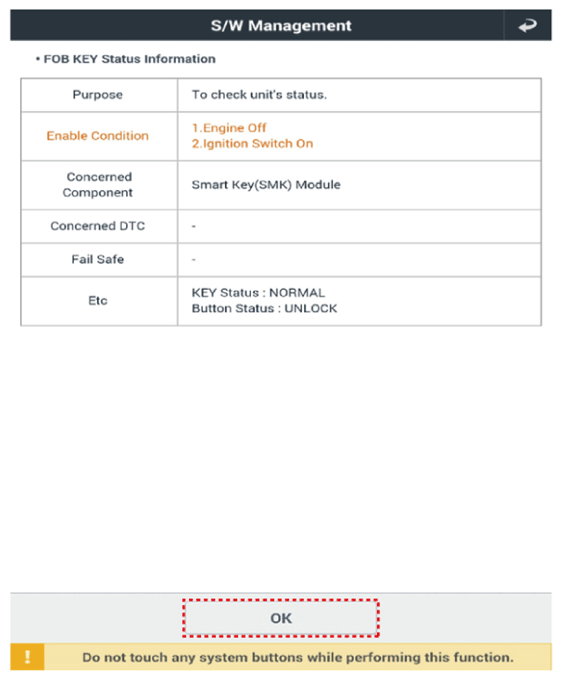

G12996760Courtesy of KIA MOTORS AMERICA, INC.

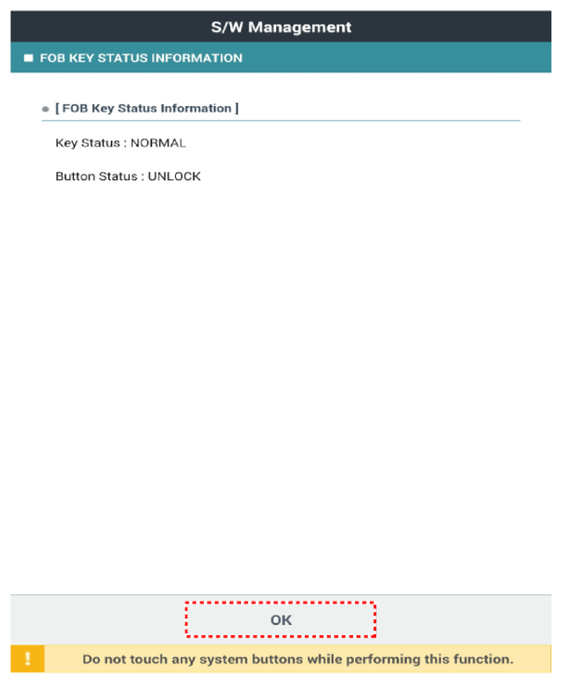

G12996761Courtesy of KIA MOTORS AMERICA, INC.
