Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

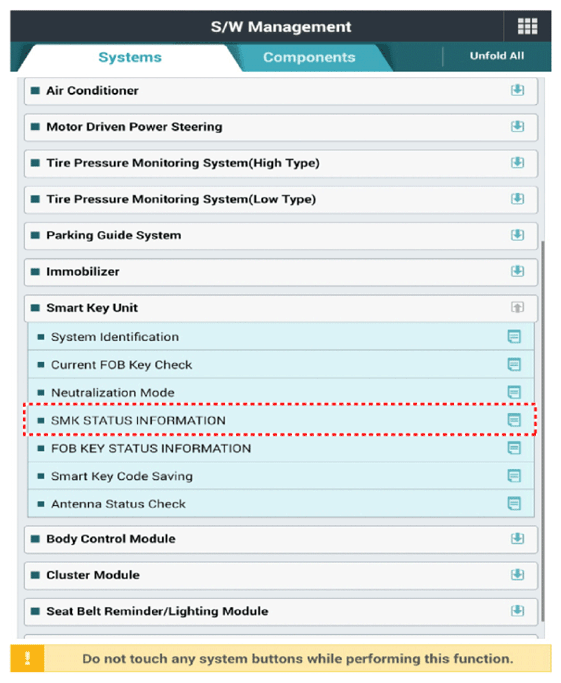

G12996762Courtesy of KIA MOTORS AMERICA, INC.

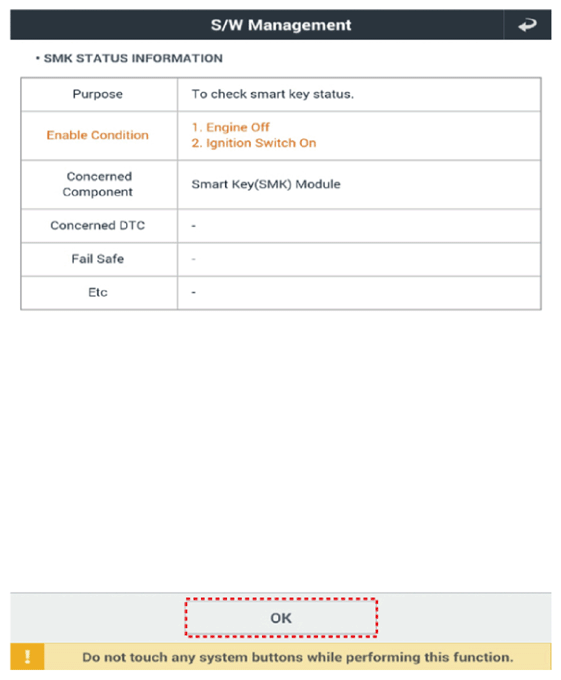

G12996763Courtesy of KIA MOTORS AMERICA, INC.

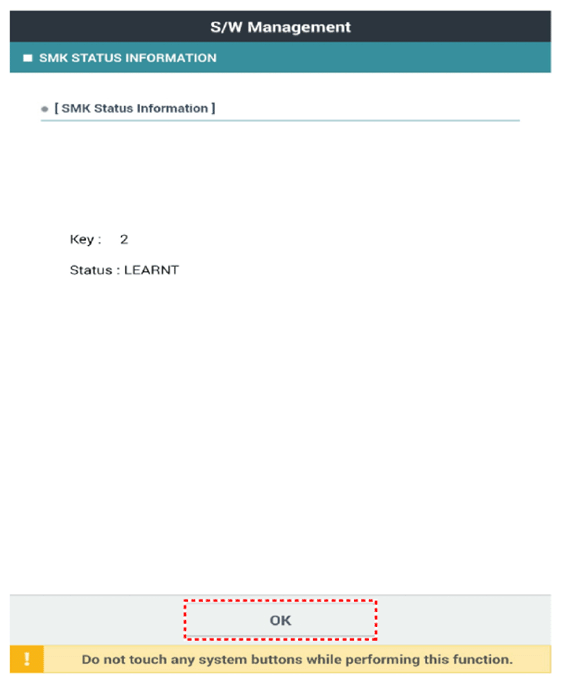

G12996764Courtesy of KIA MOTORS AMERICA, INC.
