Interior 1 Antenna
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

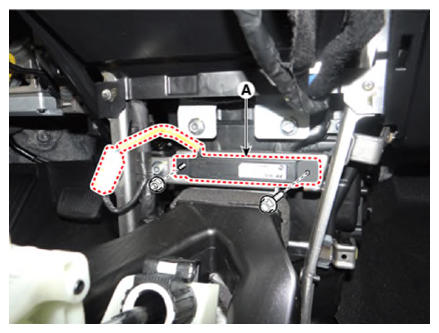

- Remove the interior 1 antenna (A) after loosening the mounting bolt and nut and disconnecting the connector.
