Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

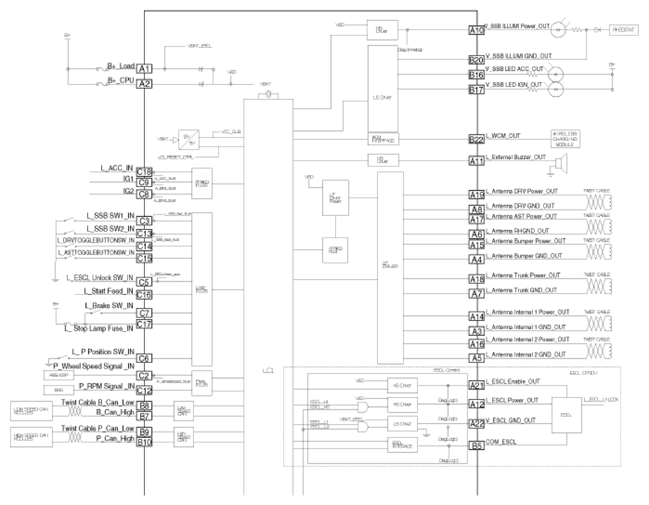

G12996723Courtesy of KIA MOTORS AMERICA, INC.

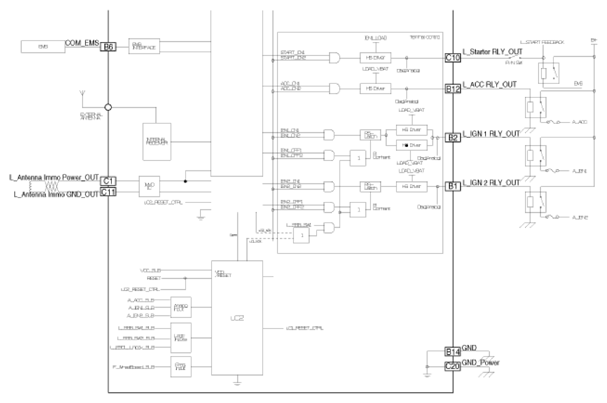

G12996724Courtesy of KIA MOTORS AMERICA, INC.
