Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Fig 1

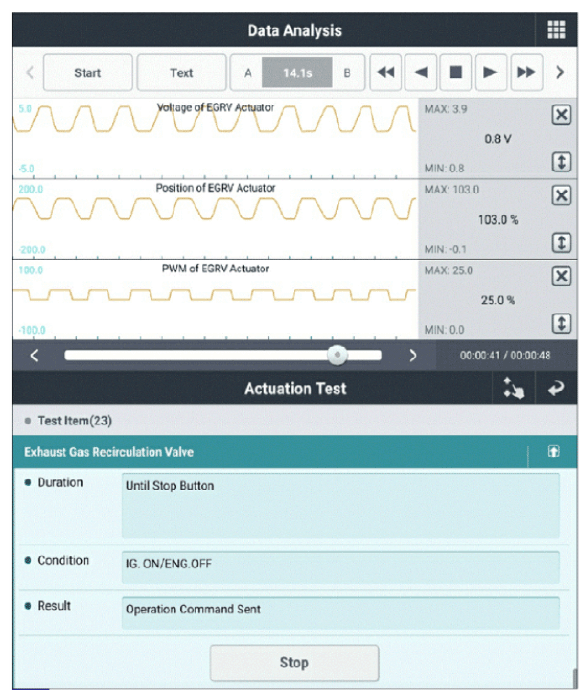

Fig 1: Screen Display - EGR Valve Current Data When Performing Exhaust Gas Recirculation Valve In Actuation Test With KDS

G12691464

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

If no problems were found with the circuits or connectors, replace the EGR valve and go to "VERIFICATION OF REPAIR " procedure.
