Cruise Control Systems
›
Advanced Smart Cruise Control System (Except HEV)
›
Advanced Smart Cruise Control (ASCC) ECU
›
Schematic Diagrams
›

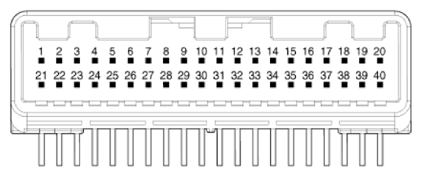

Terminal Function
Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
No.
Description
1
L-CAN [Low]
2
L-CAN [High]
20
IGN1
21
Ground
22
C-CAN [High]
23
C-CAN [Low]
