Home › Kia › 2019 › Optima EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L (Except HEV) › Camshaft Position Sensor (CMPS) › Repair Procedures › Removal › [Bank 1/Intake]

[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector.

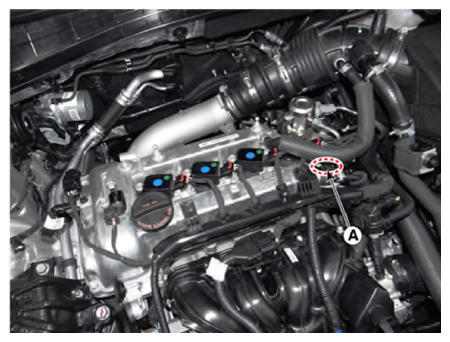

  3. Remove the sensor by loosening the mounting bolt (A).
    G12915407Courtesy of KIA MOTORS AMERICA, INC.
