Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

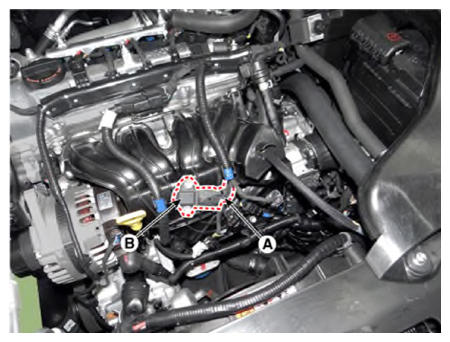

Disconnect the manifold absolute pressure sensor connector (A).
Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.
