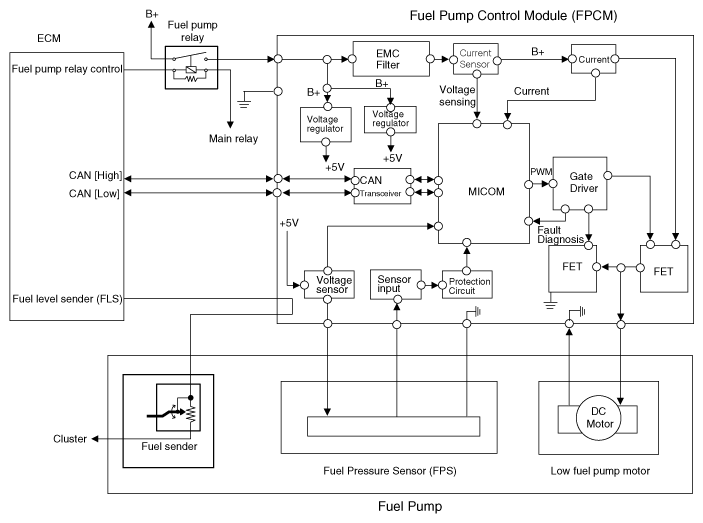

Home › Kia › 2019 › Optima EX › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 1.6L (Except HEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
