Resetting Adaptive Values

Connect KDS to DLC (Data Link Cable).
Ignition "ON" & ENG "OFF"

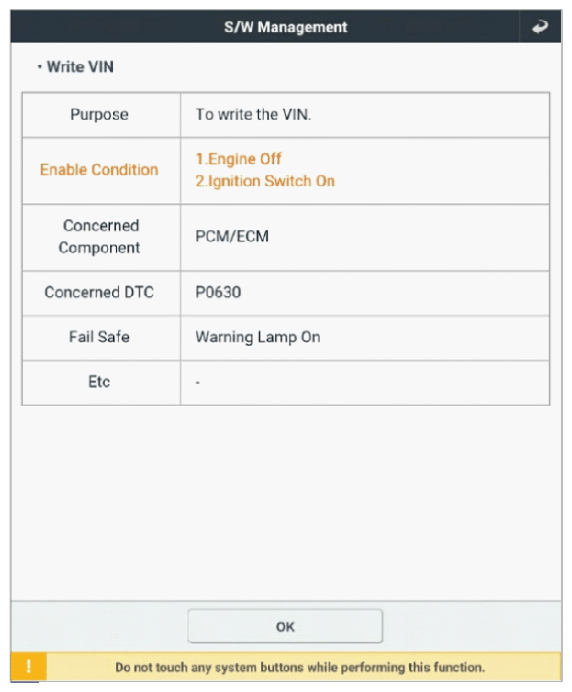

Select the "Vehicle S/W Management " about related DTC with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

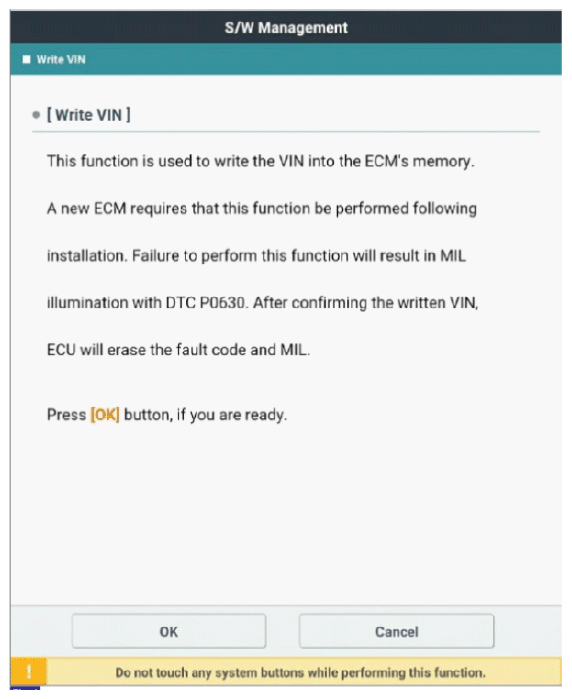

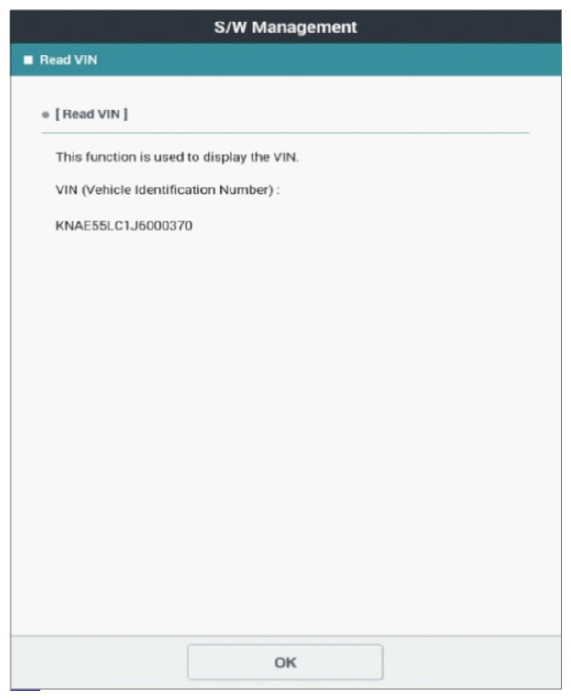

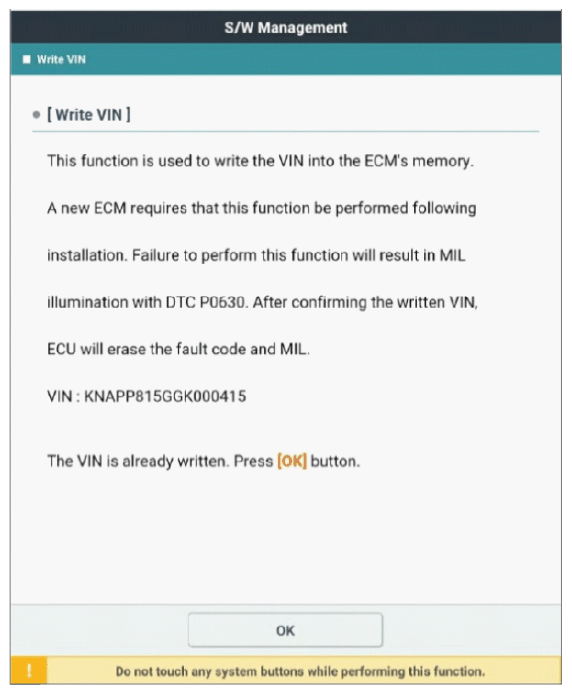

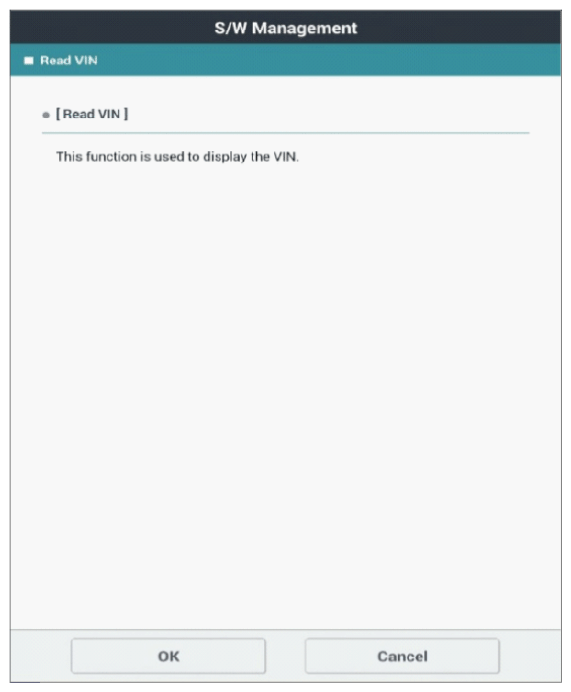

When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
