Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Shift the gear to "N".

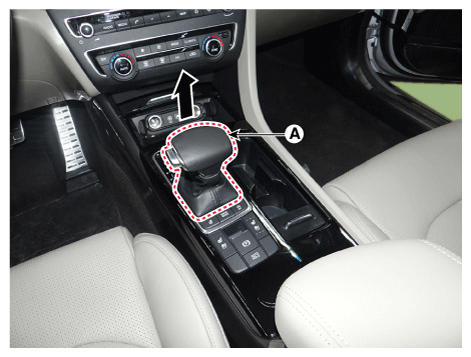

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Fig 1: Removing Knob & Boots
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

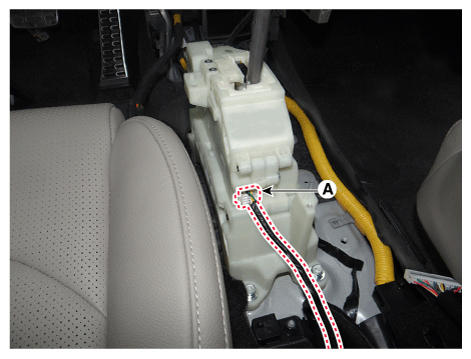

Disconnect the main connector (A).

Fig 2: Disconnecting Main Connector
Courtesy of KIA MOTORS AMERICA, INC.

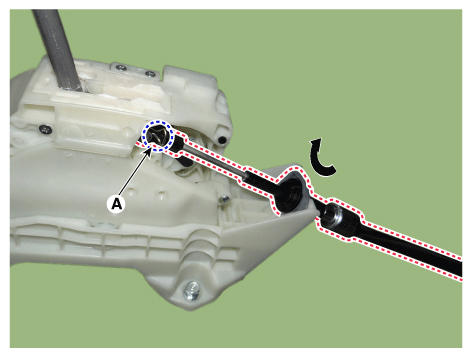

Remove the shift cable after separating the snap pin (A).

Fig 3: Removing Shift Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

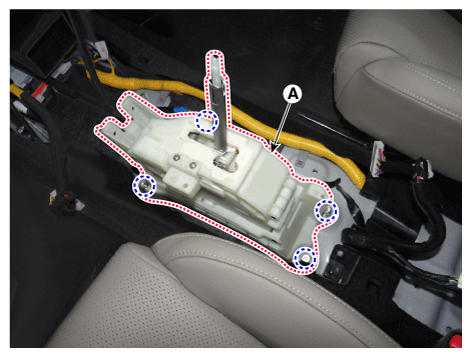

Remove the shift lever assembly (A).
Tightening torque :

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 4: Removing Shift Lever Assembly

Courtesy of KIA MOTORS AMERICA, INC.
