Accelerator Position Sensor (APS): Specifications: Specification

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

APS SPECIFICATIONS

Accelerator Position	Output Voltage (V) [Vref = 5V]
Accelerator Position	APS1	APS2
C.T	0.7 - 0.8	0.33 - 0.43
W.O.T	3.98 - 4.35	1.93 - 2.18

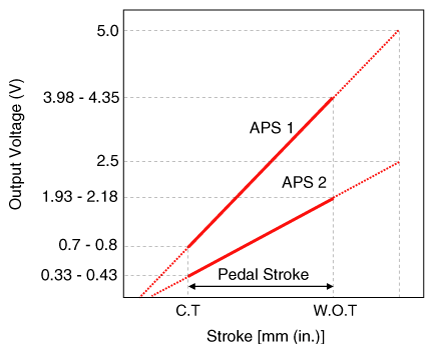

Fig 1: Accelerator Position Sensor (APS) Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.
