Analyze GDS data and confirm if there is anything wrong with the stop lamp switch.
1. Connect the GDS to the self-diagnosis connector.
2. Turn the spark switch on
3. Step on the brake pedal.
4. Inspect the "brake switch" category that displays the "sensor data" GDS.)
  Normal waveform : The pressure sensor signal value will change according to the brake ON/OFF switch.

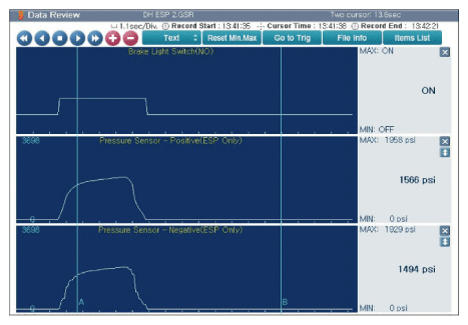

  Fig 1: Screen Display - Brake Switch Sensor Data
  Courtesy of KIA MOTORS AMERICA, INC.
