Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

Fig 1: Locating Paddle Shift Switch Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

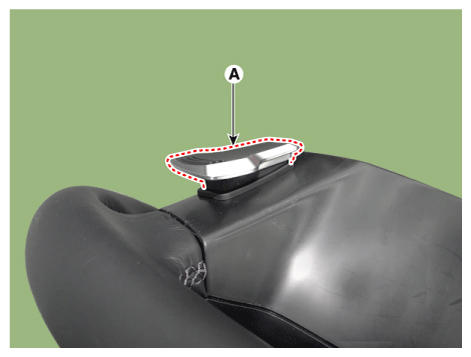

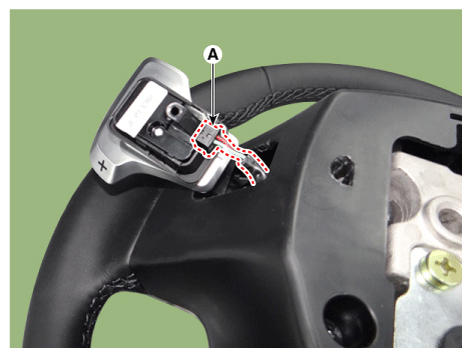

Fig 2: Locating Paddle Shift Switch (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 3: Locating Paddle Shift Switch Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.

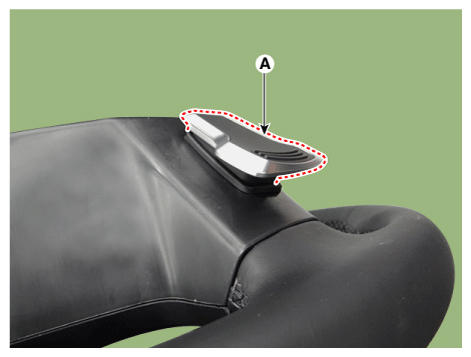

Fig 4: Locating Paddle Shift Switch (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the paddle shift switch connector (A).
[LH]

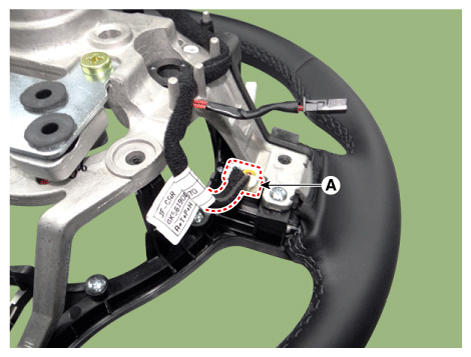

Fig 5: Locating Paddle Shift Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

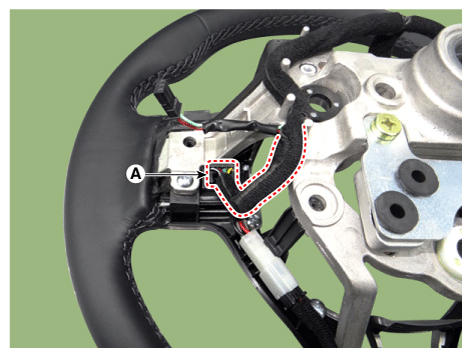

Fig 6: Locating Paddle Shift Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the screws from the steering back cover (A).

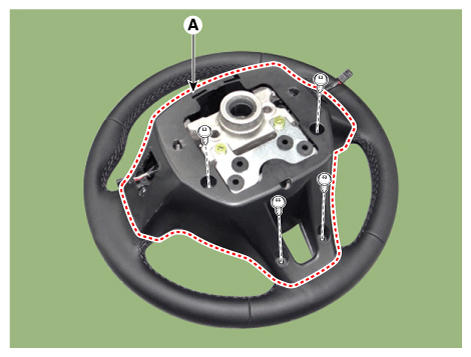

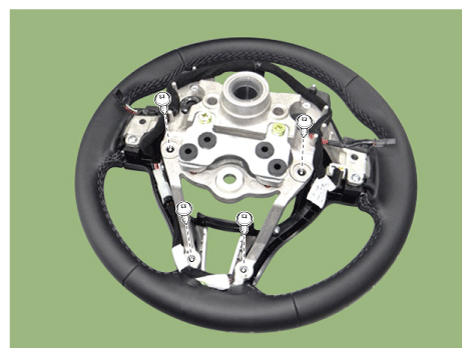

Fig 7: Locating Steering Back Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering remote control connector (A).
[LH]

Fig 8: Locating Steering Remote Control Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

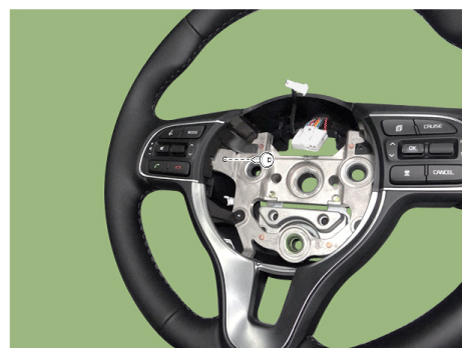

Fig 9: Locating Steering Remote Control Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering remote control assembly (A) after loosening the mounting screws.

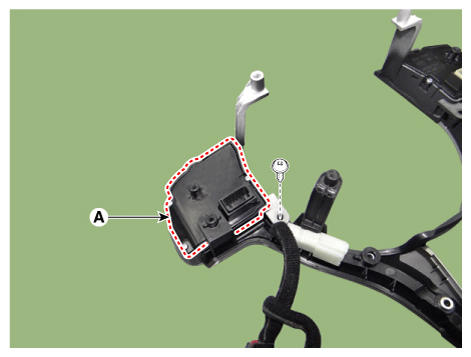

Fig 10: Locating Steering Remote Control Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

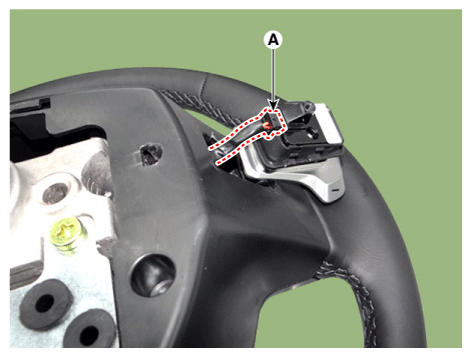

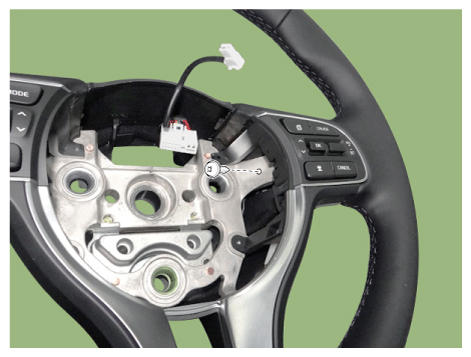

Fig 11: Locating Steering Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering remote control (A) after loosening the mounting screws.
[LH]

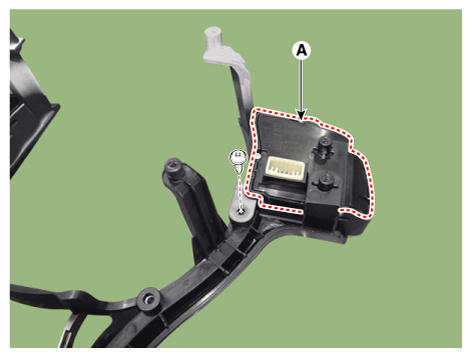

Fig 12: Locating Steering Remote Control With Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

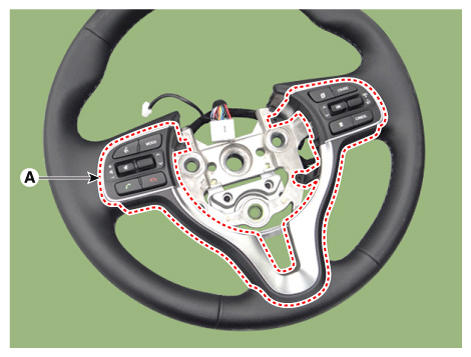

Fig 13: Locating Steering Remote Control With Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.
