Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

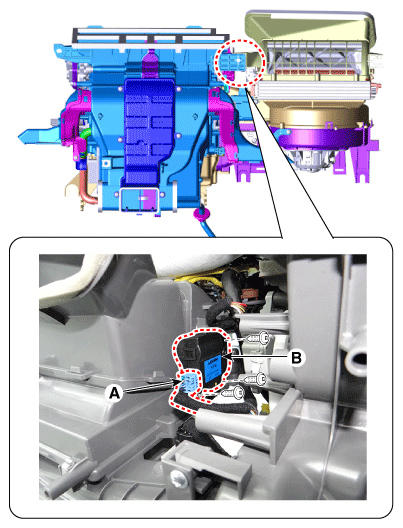

Disconnect the connector (A) and then remove the intake actuator (B) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
