Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

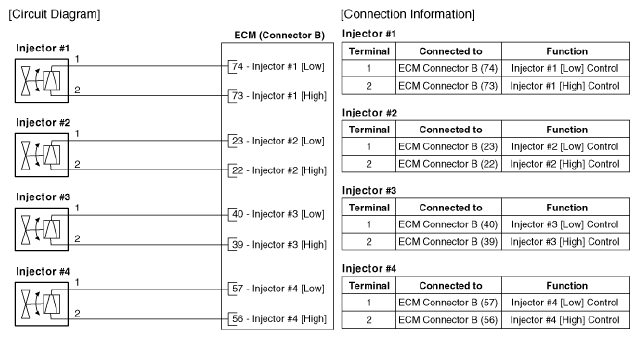

G13077645Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

G13077646Courtesy of KIA MOTORS AMERICA, INC.
