Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the heater and blower assembly.
(Refer to Heater - "HEATER UNIT ")

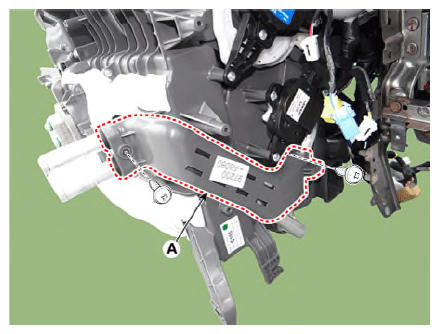

- Remove the heater core cover (A) after loosening the mounting screws.

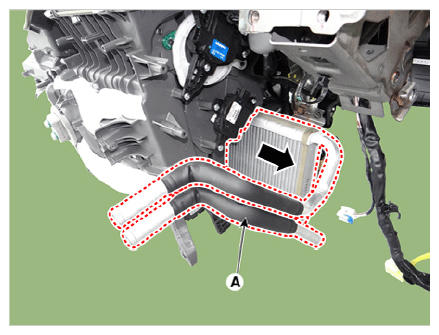

- Pull out the heater core (A) from the heater unit.
- Install in the reverse order of replacement.
