Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

[Driver side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

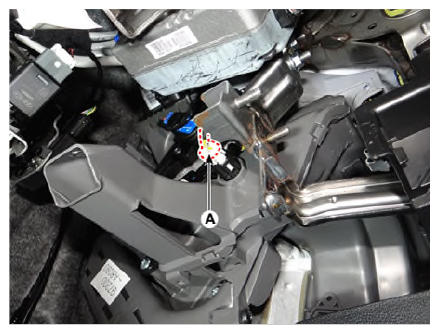

  3. Disconnect the duct sensor connector (A).
    G13082690Courtesy of KIA MOTORS AMERICA, INC.

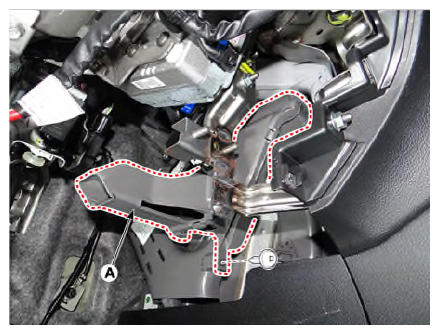

  4. Remove the driver side shower duct (A) after loosening the screw.
    G13082691Courtesy of KIA MOTORS AMERICA, INC.

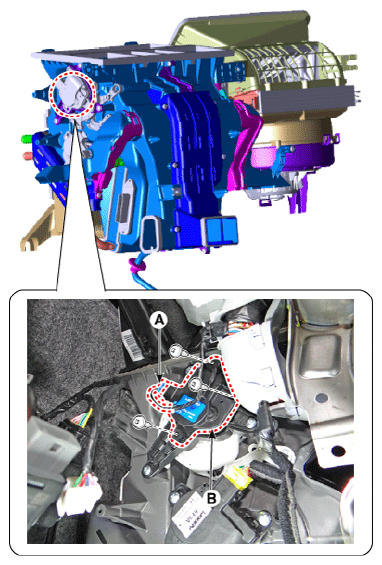

  5. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G13082692Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of replacement.

[Passenger side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

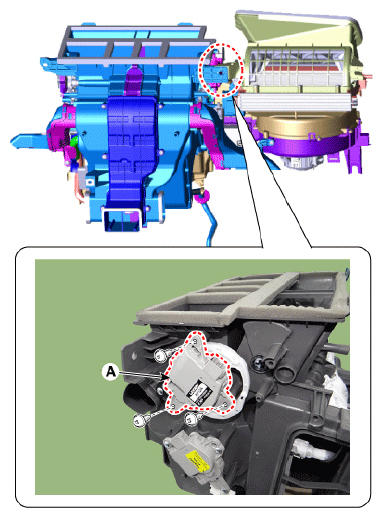

  3. Disconnect the connector and then remove the mode control actuator (A) after loosening the mounting screws.
    G13082693Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of replacement.
