Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

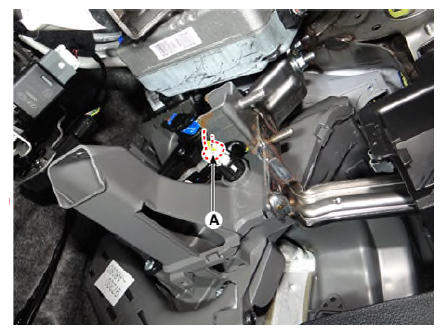

  3. Disconnect the duct sensor connector (A).
    G13082697Courtesy of KIA MOTORS AMERICA, INC.

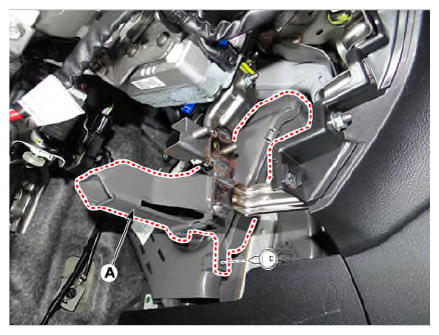

  4. Remove the driver side shower duct (A) after loosening the screw.
    G13082698Courtesy of KIA MOTORS AMERICA, INC.

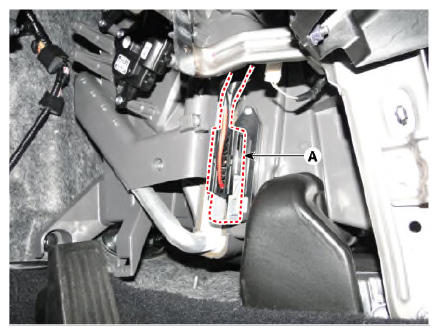

  5. Disconnect the PTC heater connector (A).
    G13082699Courtesy of KIA MOTORS AMERICA, INC.

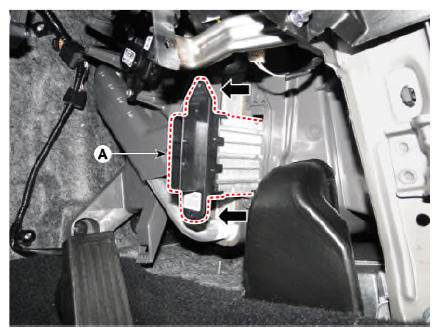

  6. Remove the PTC heater core (A) after loosening the mounting screws.
    G13082700Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of replacement.
