Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

[Driver's side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

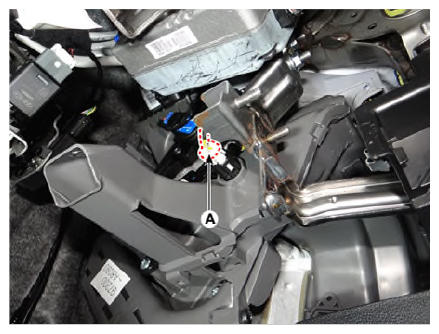

  3. Disconnect the duct sensor connector (A).
    G13082682Courtesy of KIA MOTORS AMERICA, INC.

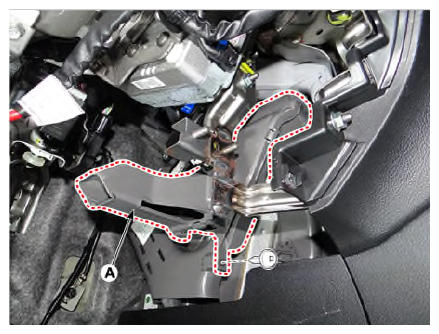

  4. Remove the driver side shower duct (A) after loosening the screw.
    G13082683Courtesy of KIA MOTORS AMERICA, INC.

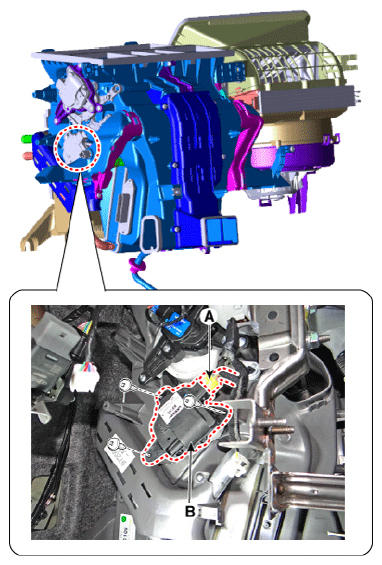

  5. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13082684Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of replacement.

[Passenger's side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

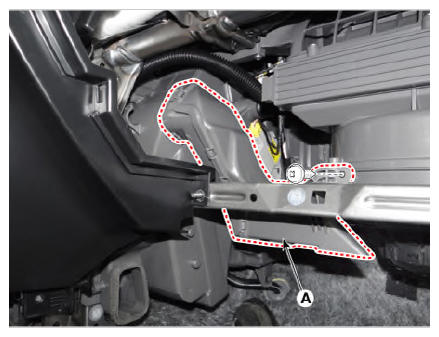

  3. Remove the passenger side shower duct (A) after loosening the screw.
    G13082685Courtesy of KIA MOTORS AMERICA, INC.

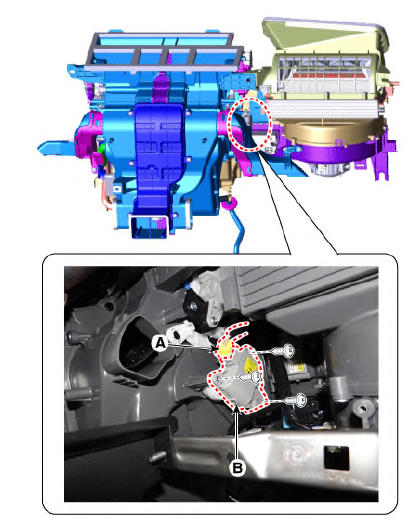

  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13082686Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of replacement.
